Revel Bikes El Jefe SRAM Eagle 90 Kit

Name: Revel Bikes El Jefe SRAM Eagle 90 Kit
Brand: Revel Bikes
Availability: InStock

$5,290.92

Size

Clear

Shop-built, torqued and test-ridden before it leaves
Free first tune-up at six weeks, on us
30-day returns, unridden and unworn

Description

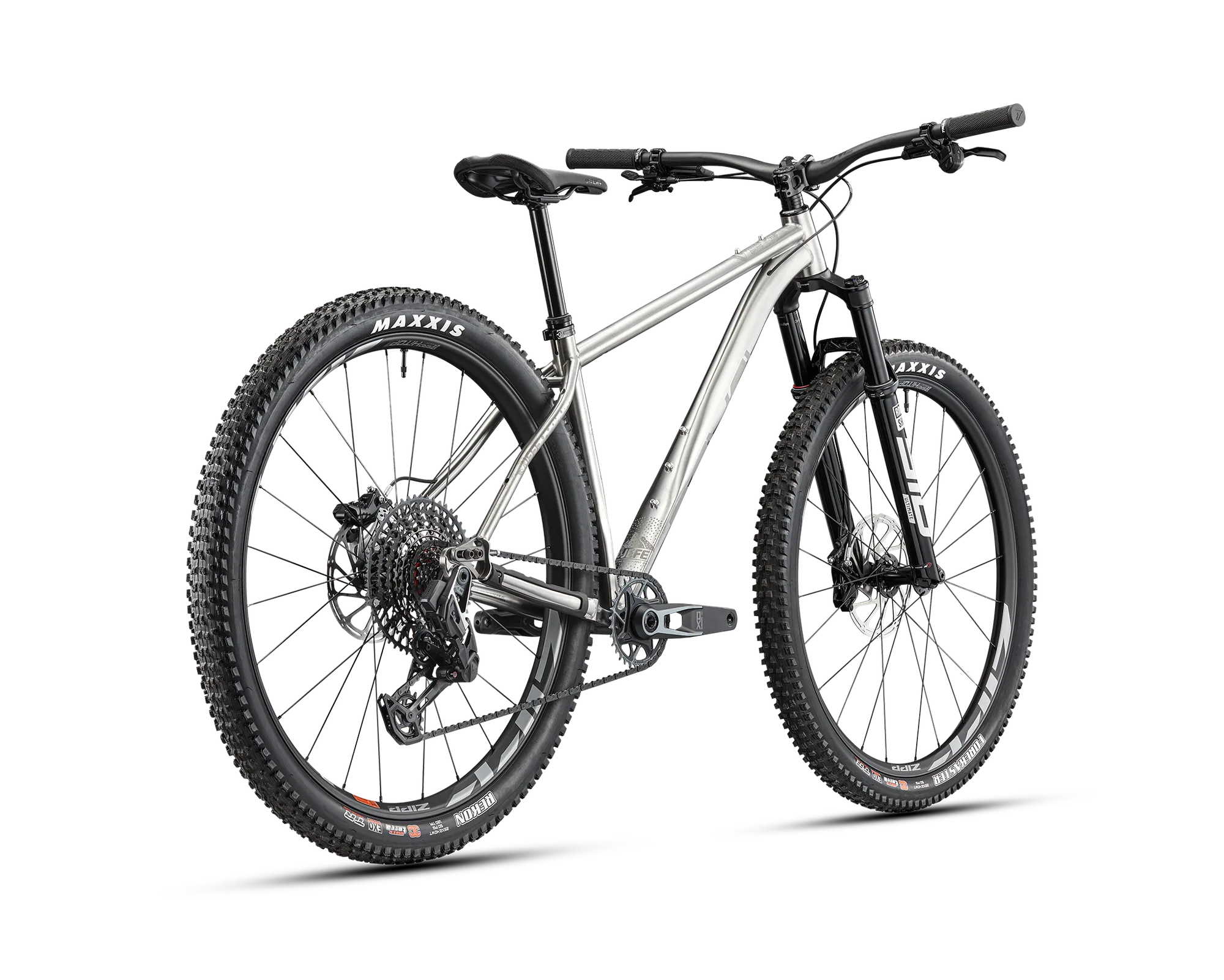

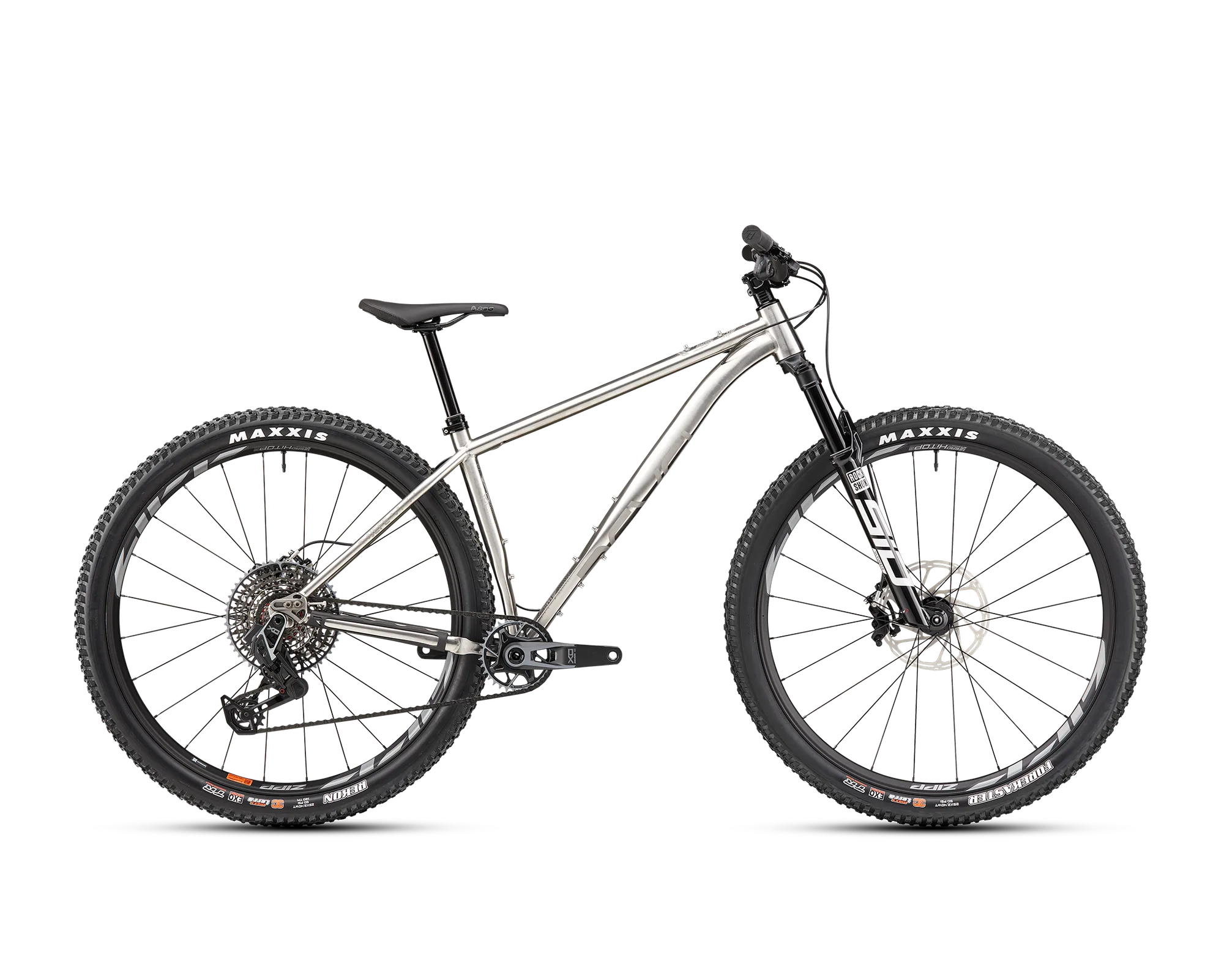

Titanium 29er, perfected

One of the most capable rides in the Revel line up, the El Jefe. Ready for damn near any ride you put in front of it, the El Jefe is fast, light, and mighty capable for long missions in the backcountry. While maintaining its playful abilities on all types of terrain.

HE HARDTAIL YOU NEED, TI IS FLY

Confidently take the Jefe bikepacking, over technical singletrack, and to the start line of your next XC race. A straight top tube, room for 29×2.6” tires with ample mud clearance. Sliding dropouts with 420-435mm chain stay adjustability allows you to build this up just how you like it. Load it up for adventure or keep it lightweight and fast.

Jefe Branham is an ultra-endurance legend based in Gunnison, CO, and the namesake for this special Revel. Jefe gave us the blueprints of his dream bike for going fast in the backcountry and together we turned it into a reality.

Additional information

Size	Large, Medium, Small, XL
Availability	In store

Reviews

There are no reviews yet.

Be the first to review “Revel Bikes El Jefe SRAM Eagle 90 Kit”

Specifications

Front Travel	120mm min / 130mm max
Rear Travel	0mm
Hub Spacing	Boost 148mm rear / 110mm front
Axles	177 x 12 x 1.0
Seatpost Diameter	31.6mm, 34.9mm Seat Clamp
Max Seatpost Insertion Depth	SM 180mm, MD 220mm, LG 245mm, XL 275mm
Rear Brake	160mm post mount / 180mm max
Rear Tire Clearance	29" x 2.6"
Bottom Bracket	73mm BSA Threaded
Max Chainring	36T max, 55mm Chainline
Tapered Headtube	IS42 Upper / IS52 Lower
Bottle Bosses	3 sets for SM frame (no seatube); 4 sets for MD – XL frames

Build Kits

SRAM EAGLE 90

	SRAM EAGLE 90	SRAM X0 TRANSMISSION	SRAM XX TRANSMISSION
Frame	Revel El Jefe 29" Hardtail	Revel El Jefe 29" Hardtail	Revel El Jefe 29" Hardtail
Fork	RockShox SID Ultimate 120mm	RockShox SID Ultimate 120mm	RockShox SID Ultimate 120mm
Headset	FSA Orbit No.42	FSA Orbit No.42	Wolf Tooth Premium
Wheels	Crank Brothers Synthesis V2 Enduro Alloy	Crank Brothers Synthesis V2 Enduro Alloy	Industry Nine Solix Whisp Carbon
Hubs	CB Ratchet	CB Ratchet	Industry Nine Solix
Tires	Maxxis Forekaster 29″ x 2.4″ EXO Front Maxxis Rekon 29″ x 2.4″ EXO Rear	Maxxis Forekaster 29″ x 2.4″ EXO Front Maxxis Rekon 29″ x 2.4″ EXO Rear	Maxxis Forekaster 29″ x 2.4″ EXO Front Maxxis Rekon 29″ x 2.4″ EXO Rear
Handlebar	OneUp Alloy Bar 35x800mm. 35mm rise	OneUp Carbon Bar 35x800mm. 35mm rise	OneUp Carbon Bar 35x800mm. 35mm rise
Stem	Revel CNC 35x40mm	Revel CNC 35x40mm	Revel CNC 35x40mm
Seatpost	OneUp V3 SM: 150mm MD: 190mm LG: 210mm XL: 240mm	OneUp V3 SM: 150mm MD: 190mm LG: 210mm XL: 240mm	RockShox Reverb AXS SM: 150mm MD: 200mm LG: 200mm XL: 225mm
Dropper Lever	OneUp Dropper Lever	OneUp Dropper Lever	SRAM AXS Shifter Pod Left
Saddle	SDG Bel-Air Lux-Alloy	SDG Bel-Air Lux-Alloy	SDG Bel-Air Lux-Alloy
Brakes	SRAM Motive Silver	SRAM Motive Silver	SRAM Motive Ultimate
Rotors	SRAM Centerline 6-Bolt 180mm F 160mm R	SRAM Centerline 6-Bolt 180mm F 160mm R	SRAM HS2 6-bolt 180mm F/R
Shifter	SRAM Eagle 90	SRAM AXS Shifter Pod Ultimate	SRAM AXS Shifter Pod Right
Rear Derailleur	SRAM Eagle 90 T-Type	SRAM X0 Eagle T-Type	SRAM XX Eagle AXS T-Type
Chain	SRAM GX Eagle 116L T-Type	SRAM X0 116L T-Type	SRAM XX Eagle 116L T-Type
Cassette	SRAM Eagle 90 XS1275 T-Type 10-52t	SRAM X0 Eagle XS1295 T-Type 10-52t	SRAM XX Eagle XG1297 T-Type 10-52t
Bottom Bracket	SRAM DUB BSA 73 MTB Wide	SRAM DUB BSA 73 MTB Wide	Wolf Tooth BSA 29mm DUB Raw Silver
Grips	Trail 1 Farlow Gap Grip	Trail 1 Farlow Gap Grip	Trail 1 Farlow Gap Grip
Seat Collar	Revel 34.9mmm Dia	Revel 34.9mmm Dia	Revel 34.9mmm Dia
Disclaimer	Specifications subject to change without notice	Specifications subject to change without notice	Specifications subject to change without notice

MEASUREMENT

	SMALL	MEDIUM	LARGE	XL
A — Effective Top Tube Length	590mm	615mm	640mm	670mm
B — Seat Tube Length	374mm	420mm	455mm	460mm
C — Seat Tube Angle	75°/73.3°	75°/73.3°	75°/73.3°	75°/73.3°
D — Chain Stay Length	420-435mm	420-435mm	420-435mm	420-435mm
E — Bottom Bracket Drop	68mm	68mm	68mm	68mm
F — Bottom Bracket Height	299mm	299mm	299mm	299mm
G — Head Tube Angle	67.5°	67.5°	67.5°	67.5°
H — Wheel Base	1121mm	1146mm	1167mm	1199mm
I — Head Tube Length	86mm	96mm	106mm	116mm
J — Axle to Crown	510mm	510mm	510mm	510mm
K — Fork Offset	44mm	44mm	44mm	44mm
L — Trail	112mm	112mm	112mm	112mm
M — Stack	599mm	607mm	615mm	627mm
N — Reach	435mm	455mm	474mm	499mm
O — Standover	700mm	735mm	770mm	790mm
