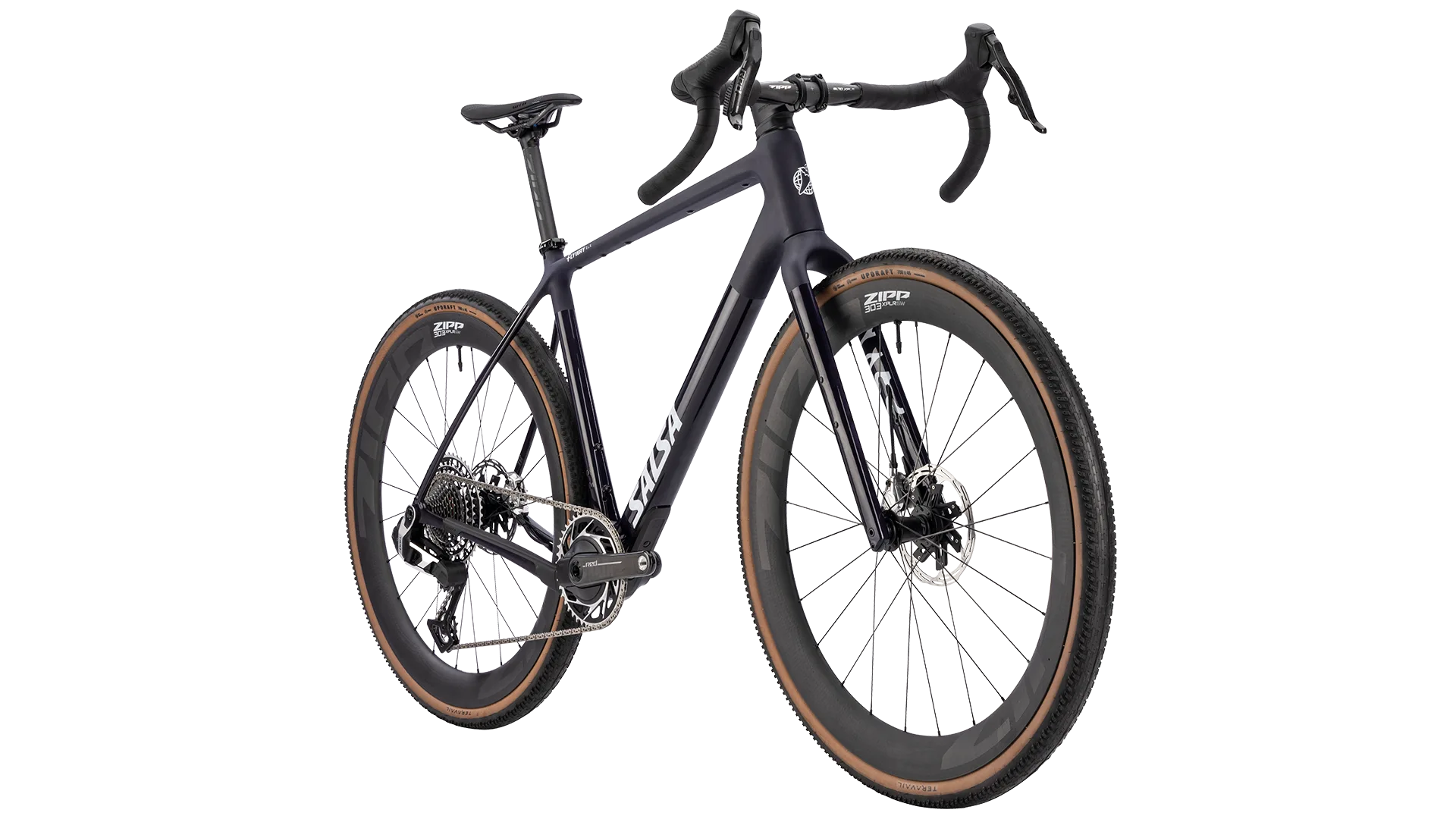

Salsa Cycles Flyway C DLX RED XPLR

Name: Salsa Cycles Flyway C DLX RED XPLR
Brand: Salsa Cycles
Availability: InStock

$11,999.00

Size

Clear

Shop-built, torqued and test-ridden before it leaves
Free first tune-up at six weeks, on us
30-day returns, unridden and unworn

Description

Flyway C DLX RED XPLR pulls decades of gravel experience into the best gravel bike we can make. Our Deluxe carbon layup shaves 150 grams of frame weight, and our Class 5 VRS™ design reduces road vibration for a light, smooth ride. Flyway’s geometry is designed to feel confident when you’re pushing race pace and comfortable when you’re just out roaming for the day. Frame and fork cargo mounts (including direct-mount frame bag mounts) keep your kit streamlined whether you’re running fast and light or loaded up. SRAM’s RED XPLR 13-speed drivetrain offers a wide gear range and precision electronic shifting for an efficient and refined ride.

Additional information

Size	Large, Medium, Medium/Large, Small, X-Large, X-Small
Frame material	Carbon
Wheel size	700c
Availability	In store

Reviews

There are no reviews yet.

Be the first to review “Salsa Cycles Flyway C DLX RED XPLR”

Specifications

Frame	Flyway Carbon Deluxe
Color	Midnight
Fork	Flyway Carbon
Rear Shock	N/A
Headset	FSA CRII
Seatpost	Zipp Service Course SL, 0-degree offset
Stem	FSA SMR-II
Grips/Bar Tape	Velo anti-slip
Saddle	WTB Gravelier
Handlebar	Zipp SL-70 XPLR
Front Derailleur	N/A
Rear Derailleur	SRAM RED XPLR AXS
Cassette	SRAM RED XPLR 10–46t, 13-speed
Chain	SRAM RED XPLR
Crankset	SRAM RED XPLR AXS Power Meter , 42t
Shifter	SRAM RED AXS HRD
Brake Levers	SRAM RED AXS HRD
Brake Calipers	SRAM RED
Bottom Bracket	SRAM DUB T47 Internal
Rotors	SRAM Paceline (160mm front and rear)
Front Tire	Teravail Updraft, 700c x 45mm
Rear Tire	Teravail Updraft, 700c x 45mm
Front Hub	Zipp
Rear Hub	Zipp
Rim	Zipp 303 XPLR
Complete Bike	17 lb 11 oz (size Medium/Large)
Design Wheel/Tire Sizes	700c
Alternate Wheel/Tire Sizes	N/A
Max Tire Outer Diameter	Tire Clearance Frame: 50mm Tire Clearance Fork: 57mm
Frame Construction	Ultra-high-modulus carbon fiber
Fork Construction	Carbon fiber
Suspension Fork Length (Travel)	40mm travel
Fork Offset	51mm
Rear Spacing	142mm
Rear Axle Size	M12, L=175mm, TP=1.0
Rear Brake (Rotor)	34mm flat mount
Front Brake (Rotor)	74mm flat mount / 160mm
Headset – Upper	IS 52
Headset – Lower	IS 52
Front Spacing	100mm
Front Axle Size	M12, L = 120, TP=1.5
Steerer Tube	1 1/8"
Seatpost	27.2mm
Dropper Post Compatible	Yes (internal)
Seatpost Clamp	32mm
Front Derailleur Clamp	Direct-mount
Derailluer Hanger	SRAM UDH
Bottom Bracket	T47 85.5 Internal
Crankset (Max Ring)	46t
Accessory Mounts	Downtube Accessory Mounts: Yes Rack Mounts Frame: Yes, with Rack-Lock seatpost collar Rack Mounts Fork: No
Bottle Mounts	Frame: 2 on XS–SM frames; 3 on MD–LG frames Fork: Two sets of Three-Pack mounts
Front Fender Mounts	Yes
Rear Fender Mounts	Yes

Size

	X-Small	Small	Medium	Medium/Large	Large	X-Large
A. Effective Top Tube	510.0	535.0	555.0	575.0	600.0	620.0
B. Stand Over	682.0	715.0	749.0	780.0	814.0	843.0
C. Reach	375.2	387.7	391.9	405.2	420.7	435.3
D. Stack	540.5	549.9	568.8	592.3	625.3	644.2
E. Total Seat Tube Length	390.0	430.0	470.0	505.0	540.0	575.0
F. Headtube Length	90.0	100.0	120.0	145.0	180.0	200.0
G. Headtube Angle	70.5	70.5	70.5	70.5	70.5	70.5
H. Seat Tube Angle	76.0	75.0	74.0	74.0	74.0	74.0
I. BB Drop	76.0	76.0	76.0	76.0	76.0	76.0
J. BB Height	283.0	283.0	283.0	283.0	283.0	283.0
K. Chainstay Length	425.0	425.0	425.0	425.0	425.0	425.0
L. Fork Length Axle to Crown	419.9	419.9	419.9	419.9	419.9	419.9
M. Fork Offset	51.0	51.0	51.0	51.0	51.0	51.0
N. Wheelbase	1012.0	1027.7	1038.7	1060.2	1087.5	1108.7
Crank Arm Length	160.0	165.0	165.0	170.0	170.0	175.0
Handlebar Width	40.0	40.0	42.0	44.0	44.0	46.0
Recommended Rider Height	147.0 – 157.0	156.0 – 166.0	165.0 – 175.0	174.0 – 184.0	183.0 – 193.0	192.0 – 201.0
Stem Length	60.0	60.0	70.0	80.0	90.0	100.0

Frame Spec

Spec	Detail
Design Wheel/Tire Sizes	700c
Alternate Wheel/Tire Sizes	N/A
Max Tire Outer Diameter	Tire Clearance Frame: 50mm Tire Clearance Fork: 57mm
Frame Construction	Ultra-high-modulus carbon fiber
Fork Construction	Carbon fiber
Suspension Fork Length (Travel)	40mm travel
Fork Offset	51mm
Rear Spacing	142mm
Rear Axle Size	M12, L=175mm, TP=1.0
Rear Brake (Rotor)	34mm flat mount
Front Brake (Rotor)	74mm flat mount / 160mm
Headset – Upper	IS 52
Headset – Lower	IS 52
Front Spacing	100mm
Front Axle Size	M12, L = 120, TP=1.5
Steerer Tube	1 1/8"
Seatpost	27.2mm
Dropper Post Compatible	Yes (internal)
Seatpost Clamp	32mm
Front Derailleur Clamp	Direct-mount
Derailluer Hanger	SRAM UDH
Bottom Bracket	T47 85.5 Internal
Crankset (Max Ring)	46t
Accessory Mounts	Downtube Accessory Mounts: Yes Rack Mounts Frame: Yes, with Rack-Lock seatpost collar Rack Mounts Fork: No
Bottle Mounts	Frame: 2 on XS–SM frames; 3 on MD–LG frames Fork: Two sets of Three-Pack mounts
Front Fender Mounts	Yes
Rear Fender Mounts	Yes
